Pyaro and PyAerocom

[1]:

import pyaerocom as pya
import matplotlib.pyplot as plt

Checking access to: /lustre/storeB/project
Checking access to: /lustre/storeB/project/aerocom
Checking access to: /lustre/storeB/project/aerocom/aerocom1

/home/danielh/miniconda3/envs/pya/lib/python3.11/site-packages/geonum/__init__.py:26: UserWarning: Plotting of maps etc. is deactivated, please install Basemap
  warn('Plotting of maps etc. is deactivated, please install Basemap')

PyaroConfig

Pyaro can be used with PyAerocom through the class called PyaroConfig. This can be thought of as a dictionary that enforeces you to give the correct inputs. We start by finding the available engines with pyaro

[2]:

import pyaro

pyaro.list_timeseries_engines()

[2]:

{'aeronetsdareader': <pyaro_readers.aeronetsdareader.AeronetSdaTimeseriesReader.AeronetSdaTimeseriesEngine at 0x7f60204ec450>,
 'aeronetsunreader': <pyaro_readers.aeronetsunreader.AeronetSunTimeseriesReader.AeronetSunTimeseriesEngine at 0x7f60209d3ad0>,
 'csv_timeseries': <pyaro.csvreader.CSVTimeseriesReader.CSVTimeseriesEngine at 0x7f6020705dd0>}

We want to read aeronetsun data. We can now make the config with PyaroConfig

[3]:

from pyaerocom.io.pyaro.pyaro_config import PyaroConfig

data_id = "aeronetsunreader"
url = "https://pyaerocom.met.no/pyaro-suppl/testdata/aeronetsun_testdata.csv"
filters = {"variables": {"include": ["AOD_550nm"]}}
name_map = {"AOD_550nm": "od550aer"}


config = PyaroConfig(
    data_id=data_id,
    filename_or_obj_or_url=url,
    filters=filters,
    name_map=name_map,
)

The config contains four fields:

  1. data_id: The name of the reader/data. This name must be one of the names allowed by Pyaro

  2. filename_or_obj_or_url: The path to the dataset, that being a path or an url

  3. filters: Dictionary of filters

  4. name_map: A dictionary which gives new names to variables found in the data set. On the form {old_name: new_name}

Filters

Filters are objects that can be used to read a subset of data. In the above example we’ve used a filter to filter out all variables that are not AOD 550nm. Different engines have different filters, so to find out which filters are available use

[4]:

engine = pyaro.list_timeseries_engines()[data_id] # Finds the engine associated with aeronetsunreader
engine.supported_filters()

[4]:

[VariableNameFilter(**{'reader_to_new': {}, 'include': [], 'exclude': []}),
 StationFilter(**{'include': [], 'exclude': []}),
 CountryFilter(**{'include': [], 'exclude': []}),
 BoundingBoxFilter(**{'include': [], 'exclude': []}),
 TimeBoundsFilter(**{'start_include': [], 'start_exclude': [], 'startend_include': [], 'startend_exclude': [], 'end_include': [], 'end_exclude': []}),
 FlagFilter(**{'include': [], 'exclude': []})]

Here is a list of the available filters. The name of the filter, is given as the first part of the names in the list above. The filters are written as dictionaries, with the name as the key and another dictionary as the value. There we define how the filter is used. In our case "variablesand {include: ["AOD_550nm"]}.

Passing the config to PyAerocom

We can now pass this config into ReadUngriddedto read the data. For this we use the new argument config

[5]:

rp = pya.io.ReadUngridded(config=config)

data = rp.read(vars_to_retrieve=["od550aer"])

100%|████████████████████████████████████| 9993/9993 [00:00<00:00, 34798.90it/s]

<class 'pyaerocom.io.read_aeronet_invv3.ReadAeronetInvV3'> ['AeronetInvV3Lev2.daily', 'AeronetInvV3Lev1.5.daily']
<class 'pyaerocom.io.read_aeronet_invv2.ReadAeronetInvV2'> ['AeronetInvV2Lev2.daily', 'AeronetInvV2Lev1.5.daily']
<class 'pyaerocom.io.read_aeronet_sdav2.ReadAeronetSdaV2'> ['AeronetSDAV2Lev2.daily']
<class 'pyaerocom.io.read_aeronet_sdav3.ReadAeronetSdaV3'> ['AeronetSDAV3Lev1.5.daily', 'AeronetSDAV3Lev2.daily']
<class 'pyaerocom.io.read_aeronet_sunv2.ReadAeronetSunV2'> ['AeronetSunV2Lev2.daily', 'AeronetSunV2Lev2.AP']
<class 'pyaerocom.io.read_aeronet_sunv3.ReadAeronetSunV3'> ['AeronetSunV3Lev1.5.daily', 'AeronetSunV3Lev1.5.AP', 'AeronetSunV3Lev2.daily', 'AeronetSunV3Lev2.AP']
<class 'pyaerocom.io.read_earlinet.ReadEarlinet'> ['EARLINET']
<class 'pyaerocom.io.read_ebas.ReadEbas'> ['EBASMC']
<class 'pyaerocom.io.read_aasetal.ReadAasEtal'> ['GAWTADsubsetAasEtAl']
<class 'pyaerocom.io.read_airnow.ReadAirNow'> ['AirNow']
<class 'pyaerocom.io.read_eea_aqerep.ReadEEAAQEREP'> ['EEAAQeRep.NRT']
<class 'pyaerocom.io.read_eea_aqerep_v2.ReadEEAAQEREP_V2'> ['EEAAQeRep.v2']
<class 'pyaerocom.io.pyaro.read_pyaro.ReadPyaro'> ['aeronetsdareader', 'aeronetsunreader', 'csv_timeseries']
<class 'pyaerocom.plugins.gaw.reader.ReadGAW'> ['DMS_AMS_CVO']
<class 'pyaerocom.plugins.ghost.reader.ReadGhost'> ['GHOST.EEA.monthly', 'GHOST.EEA.hourly', 'GHOST.EEA.daily', 'GHOST.EBAS.monthly', 'GHOST.EBAS.hourly', 'GHOST.EBAS.daily']
<class 'pyaerocom.plugins.mep.reader.ReadMEP'> ['MEP']
Successfully loaded cache file /home/danielh/MyPyaerocom/_cache/danielh/aeronetsunreader_od550aer.pkl
Successfully imported aeronetsunreader data

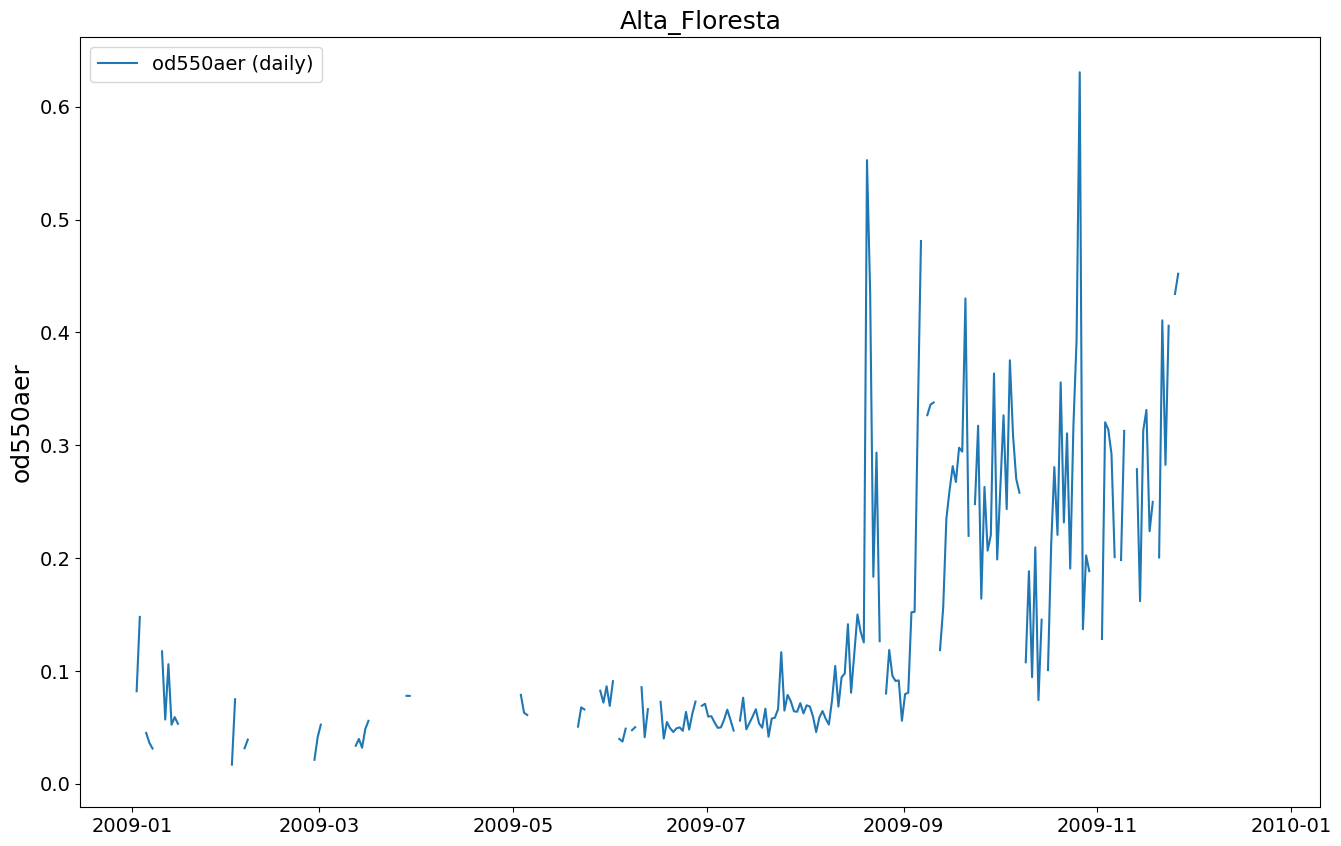

We can now look at the data for a station

[6]:

data.plot_station_timeseries(1, "od550aer", start=2009)

Input time frequency daily equals current frequency of data. Resampling will be applied anyways which will introduce NaN values at missing time stamps

[6]:

<Axes: title={'center': 'Alta_Floresta'}, ylabel='od550aer'>
../_images/tutorials_pyaerocom_13_2.png

Colocation

We can now move on to colocation. For this we need some model data. We can use Aerocom data

[7]:

model_id = "AEROCOM-MEAN-2x3_AP3-CTRL"
model_name = "AEROCOM_MEAN"

Now we can pass this, and our config into the Colocator. Now the config needs to be passed as the argument obs_config

[8]:

col = pya.Colocator(
    model_id=model_id,
    obs_config=config,
    obs_vars="od550aer",
    ts_type="monthly",
    model_ts_type_read="monthly",
    model_name=model_name,
)

col.run()

<class 'pyaerocom.io.read_aeronet_invv3.ReadAeronetInvV3'> ['AeronetInvV3Lev2.daily', 'AeronetInvV3Lev1.5.daily']
<class 'pyaerocom.io.read_aeronet_invv2.ReadAeronetInvV2'> ['AeronetInvV2Lev2.daily', 'AeronetInvV2Lev1.5.daily']
<class 'pyaerocom.io.read_aeronet_sdav2.ReadAeronetSdaV2'> ['AeronetSDAV2Lev2.daily']
<class 'pyaerocom.io.read_aeronet_sdav3.ReadAeronetSdaV3'> ['AeronetSDAV3Lev1.5.daily', 'AeronetSDAV3Lev2.daily']
<class 'pyaerocom.io.read_aeronet_sunv2.ReadAeronetSunV2'> ['AeronetSunV2Lev2.daily', 'AeronetSunV2Lev2.AP']
<class 'pyaerocom.io.read_aeronet_sunv3.ReadAeronetSunV3'> ['AeronetSunV3Lev1.5.daily', 'AeronetSunV3Lev1.5.AP', 'AeronetSunV3Lev2.daily', 'AeronetSunV3Lev2.AP']
<class 'pyaerocom.io.read_earlinet.ReadEarlinet'> ['EARLINET']
<class 'pyaerocom.io.read_ebas.ReadEbas'> ['EBASMC']
<class 'pyaerocom.io.read_aasetal.ReadAasEtal'> ['GAWTADsubsetAasEtAl']
<class 'pyaerocom.io.read_airnow.ReadAirNow'> ['AirNow']
<class 'pyaerocom.io.read_eea_aqerep.ReadEEAAQEREP'> ['EEAAQeRep.NRT']
<class 'pyaerocom.io.read_eea_aqerep_v2.ReadEEAAQEREP_V2'> ['EEAAQeRep.v2']
<class 'pyaerocom.io.pyaro.read_pyaro.ReadPyaro'> ['aeronetsdareader', 'aeronetsunreader', 'csv_timeseries']
<class 'pyaerocom.plugins.gaw.reader.ReadGAW'> ['DMS_AMS_CVO']
<class 'pyaerocom.plugins.ghost.reader.ReadGhost'> ['GHOST.EEA.monthly', 'GHOST.EEA.hourly', 'GHOST.EEA.daily', 'GHOST.EBAS.monthly', 'GHOST.EBAS.hourly', 'GHOST.EBAS.daily']
<class 'pyaerocom.plugins.mep.reader.ReadMEP'> ['MEP']

100%|████████████████████████████████████| 9993/9993 [00:00<00:00, 47789.66it/s]

<class 'pyaerocom.io.read_aeronet_invv3.ReadAeronetInvV3'> ['AeronetInvV3Lev2.daily', 'AeronetInvV3Lev1.5.daily']
<class 'pyaerocom.io.read_aeronet_invv2.ReadAeronetInvV2'> ['AeronetInvV2Lev2.daily', 'AeronetInvV2Lev1.5.daily']
<class 'pyaerocom.io.read_aeronet_sdav2.ReadAeronetSdaV2'> ['AeronetSDAV2Lev2.daily']
<class 'pyaerocom.io.read_aeronet_sdav3.ReadAeronetSdaV3'> ['AeronetSDAV3Lev1.5.daily', 'AeronetSDAV3Lev2.daily']
<class 'pyaerocom.io.read_aeronet_sunv2.ReadAeronetSunV2'> ['AeronetSunV2Lev2.daily', 'AeronetSunV2Lev2.AP']
<class 'pyaerocom.io.read_aeronet_sunv3.ReadAeronetSunV3'> ['AeronetSunV3Lev1.5.daily', 'AeronetSunV3Lev1.5.AP', 'AeronetSunV3Lev2.daily', 'AeronetSunV3Lev2.AP']
<class 'pyaerocom.io.read_earlinet.ReadEarlinet'> ['EARLINET']
<class 'pyaerocom.io.read_ebas.ReadEbas'> ['EBASMC']
<class 'pyaerocom.io.read_aasetal.ReadAasEtal'> ['GAWTADsubsetAasEtAl']
<class 'pyaerocom.io.read_airnow.ReadAirNow'> ['AirNow']
<class 'pyaerocom.io.read_eea_aqerep.ReadEEAAQEREP'> ['EEAAQeRep.NRT']
<class 'pyaerocom.io.read_eea_aqerep_v2.ReadEEAAQEREP_V2'> ['EEAAQeRep.v2']
<class 'pyaerocom.io.pyaro.read_pyaro.ReadPyaro'> ['aeronetsdareader', 'aeronetsunreader', 'csv_timeseries']
<class 'pyaerocom.plugins.gaw.reader.ReadGAW'> ['DMS_AMS_CVO']
<class 'pyaerocom.plugins.ghost.reader.ReadGhost'> ['GHOST.EEA.monthly', 'GHOST.EEA.hourly', 'GHOST.EEA.daily', 'GHOST.EBAS.monthly', 'GHOST.EBAS.hourly', 'GHOST.EBAS.daily']
<class 'pyaerocom.plugins.mep.reader.ReadMEP'> ['MEP']
<class 'pyaerocom.io.read_aeronet_invv3.ReadAeronetInvV3'> ['AeronetInvV3Lev2.daily', 'AeronetInvV3Lev1.5.daily']
<class 'pyaerocom.io.read_aeronet_invv2.ReadAeronetInvV2'> ['AeronetInvV2Lev2.daily', 'AeronetInvV2Lev1.5.daily']
<class 'pyaerocom.io.read_aeronet_sdav2.ReadAeronetSdaV2'> ['AeronetSDAV2Lev2.daily']
<class 'pyaerocom.io.read_aeronet_sdav3.ReadAeronetSdaV3'> ['AeronetSDAV3Lev1.5.daily', 'AeronetSDAV3Lev2.daily']
<class 'pyaerocom.io.read_aeronet_sunv2.ReadAeronetSunV2'> ['AeronetSunV2Lev2.daily', 'AeronetSunV2Lev2.AP']
<class 'pyaerocom.io.read_aeronet_sunv3.ReadAeronetSunV3'> ['AeronetSunV3Lev1.5.daily', 'AeronetSunV3Lev1.5.AP', 'AeronetSunV3Lev2.daily', 'AeronetSunV3Lev2.AP']
<class 'pyaerocom.io.read_earlinet.ReadEarlinet'> ['EARLINET']
<class 'pyaerocom.io.read_ebas.ReadEbas'> ['EBASMC']
<class 'pyaerocom.io.read_aasetal.ReadAasEtal'> ['GAWTADsubsetAasEtAl']
<class 'pyaerocom.io.read_airnow.ReadAirNow'> ['AirNow']
<class 'pyaerocom.io.read_eea_aqerep.ReadEEAAQEREP'> ['EEAAQeRep.NRT']
<class 'pyaerocom.io.read_eea_aqerep_v2.ReadEEAAQEREP_V2'> ['EEAAQeRep.v2']
<class 'pyaerocom.io.pyaro.read_pyaro.ReadPyaro'> ['aeronetsdareader', 'aeronetsunreader', 'csv_timeseries']
<class 'pyaerocom.plugins.gaw.reader.ReadGAW'> ['DMS_AMS_CVO']
<class 'pyaerocom.plugins.ghost.reader.ReadGhost'> ['GHOST.EEA.monthly', 'GHOST.EEA.hourly', 'GHOST.EEA.daily', 'GHOST.EBAS.monthly', 'GHOST.EBAS.hourly', 'GHOST.EBAS.daily']
<class 'pyaerocom.plugins.mep.reader.ReadMEP'> ['MEP']
Searching database for AEROCOM-MEAN-2x3_AP3-CTRL



/lustre/storeB/project/aerocom/aerocom-users-database/AEROCOM-PHASE-III-2019/AEROCOM-MEAN-2x3_AP3-CTRL has subdir renamed. Using that one
Found match for ID AEROCOM-MEAN-2x3_AP3-CTRL
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Meteorology config substring in data_id MEAN-2x3 needs to start with met.
Unknown input variable mmrprcpoxn
Unknown input variable mmrprcpoxs
Unknown input variable mmrprcprdn
Invalid long_name None for coord time in cube. Overwriting with Time
Invalid long_name None for coord lat in cube. Overwriting with Center coordinates for latitudes
Invalid long_name None for coord lon in cube. Overwriting with Center coordinates for longitudes
The following variable combinations will be colocated
MODEL-VAR       OBS-VAR
od550aer        od550aer
Running AEROCOM-MEAN-2x3_AP3-CTRL (od550aer) vs. aeronetsunreader (od550aer)
<class 'pyaerocom.io.read_aeronet_invv3.ReadAeronetInvV3'> ['AeronetInvV3Lev2.daily', 'AeronetInvV3Lev1.5.daily']
<class 'pyaerocom.io.read_aeronet_invv2.ReadAeronetInvV2'> ['AeronetInvV2Lev2.daily', 'AeronetInvV2Lev1.5.daily']
<class 'pyaerocom.io.read_aeronet_sdav2.ReadAeronetSdaV2'> ['AeronetSDAV2Lev2.daily']
<class 'pyaerocom.io.read_aeronet_sdav3.ReadAeronetSdaV3'> ['AeronetSDAV3Lev1.5.daily', 'AeronetSDAV3Lev2.daily']
<class 'pyaerocom.io.read_aeronet_sunv2.ReadAeronetSunV2'> ['AeronetSunV2Lev2.daily', 'AeronetSunV2Lev2.AP']
<class 'pyaerocom.io.read_aeronet_sunv3.ReadAeronetSunV3'> ['AeronetSunV3Lev1.5.daily', 'AeronetSunV3Lev1.5.AP', 'AeronetSunV3Lev2.daily', 'AeronetSunV3Lev2.AP']
<class 'pyaerocom.io.read_earlinet.ReadEarlinet'> ['EARLINET']
<class 'pyaerocom.io.read_ebas.ReadEbas'> ['EBASMC']
<class 'pyaerocom.io.read_aasetal.ReadAasEtal'> ['GAWTADsubsetAasEtAl']
<class 'pyaerocom.io.read_airnow.ReadAirNow'> ['AirNow']
<class 'pyaerocom.io.read_eea_aqerep.ReadEEAAQEREP'> ['EEAAQeRep.NRT']
<class 'pyaerocom.io.read_eea_aqerep_v2.ReadEEAAQEREP_V2'> ['EEAAQeRep.v2']
<class 'pyaerocom.io.pyaro.read_pyaro.ReadPyaro'> ['aeronetsdareader', 'aeronetsunreader', 'csv_timeseries']
<class 'pyaerocom.plugins.gaw.reader.ReadGAW'> ['DMS_AMS_CVO']
<class 'pyaerocom.plugins.ghost.reader.ReadGhost'> ['GHOST.EEA.monthly', 'GHOST.EEA.hourly', 'GHOST.EEA.daily', 'GHOST.EBAS.monthly', 'GHOST.EBAS.hourly', 'GHOST.EBAS.daily']
<class 'pyaerocom.plugins.mep.reader.ReadMEP'> ['MEP']
<class 'pyaerocom.io.read_aeronet_invv3.ReadAeronetInvV3'> ['AeronetInvV3Lev2.daily', 'AeronetInvV3Lev1.5.daily']
<class 'pyaerocom.io.read_aeronet_invv2.ReadAeronetInvV2'> ['AeronetInvV2Lev2.daily', 'AeronetInvV2Lev1.5.daily']
<class 'pyaerocom.io.read_aeronet_sdav2.ReadAeronetSdaV2'> ['AeronetSDAV2Lev2.daily']
<class 'pyaerocom.io.read_aeronet_sdav3.ReadAeronetSdaV3'> ['AeronetSDAV3Lev1.5.daily', 'AeronetSDAV3Lev2.daily']
<class 'pyaerocom.io.read_aeronet_sunv2.ReadAeronetSunV2'> ['AeronetSunV2Lev2.daily', 'AeronetSunV2Lev2.AP']
<class 'pyaerocom.io.read_aeronet_sunv3.ReadAeronetSunV3'> ['AeronetSunV3Lev1.5.daily', 'AeronetSunV3Lev1.5.AP', 'AeronetSunV3Lev2.daily', 'AeronetSunV3Lev2.AP']
<class 'pyaerocom.io.read_earlinet.ReadEarlinet'> ['EARLINET']
<class 'pyaerocom.io.read_ebas.ReadEbas'> ['EBASMC']
<class 'pyaerocom.io.read_aasetal.ReadAasEtal'> ['GAWTADsubsetAasEtAl']
<class 'pyaerocom.io.read_airnow.ReadAirNow'> ['AirNow']
<class 'pyaerocom.io.read_eea_aqerep.ReadEEAAQEREP'> ['EEAAQeRep.NRT']
<class 'pyaerocom.io.read_eea_aqerep_v2.ReadEEAAQEREP_V2'> ['EEAAQeRep.v2']
<class 'pyaerocom.io.pyaro.read_pyaro.ReadPyaro'> ['aeronetsdareader', 'aeronetsunreader', 'csv_timeseries']
<class 'pyaerocom.plugins.gaw.reader.ReadGAW'> ['DMS_AMS_CVO']
<class 'pyaerocom.plugins.ghost.reader.ReadGhost'> ['GHOST.EEA.monthly', 'GHOST.EEA.hourly', 'GHOST.EEA.daily', 'GHOST.EBAS.monthly', 'GHOST.EBAS.hourly', 'GHOST.EBAS.daily']
<class 'pyaerocom.plugins.mep.reader.ReadMEP'> ['MEP']
<class 'pyaerocom.io.read_aeronet_invv3.ReadAeronetInvV3'> ['AeronetInvV3Lev2.daily', 'AeronetInvV3Lev1.5.daily']
<class 'pyaerocom.io.read_aeronet_invv2.ReadAeronetInvV2'> ['AeronetInvV2Lev2.daily', 'AeronetInvV2Lev1.5.daily']
<class 'pyaerocom.io.read_aeronet_sdav2.ReadAeronetSdaV2'> ['AeronetSDAV2Lev2.daily']
<class 'pyaerocom.io.read_aeronet_sdav3.ReadAeronetSdaV3'> ['AeronetSDAV3Lev1.5.daily', 'AeronetSDAV3Lev2.daily']
<class 'pyaerocom.io.read_aeronet_sunv2.ReadAeronetSunV2'> ['AeronetSunV2Lev2.daily', 'AeronetSunV2Lev2.AP']
<class 'pyaerocom.io.read_aeronet_sunv3.ReadAeronetSunV3'> ['AeronetSunV3Lev1.5.daily', 'AeronetSunV3Lev1.5.AP', 'AeronetSunV3Lev2.daily', 'AeronetSunV3Lev2.AP']
<class 'pyaerocom.io.read_earlinet.ReadEarlinet'> ['EARLINET']
<class 'pyaerocom.io.read_ebas.ReadEbas'> ['EBASMC']
<class 'pyaerocom.io.read_aasetal.ReadAasEtal'> ['GAWTADsubsetAasEtAl']
<class 'pyaerocom.io.read_airnow.ReadAirNow'> ['AirNow']
<class 'pyaerocom.io.read_eea_aqerep.ReadEEAAQEREP'> ['EEAAQeRep.NRT']
<class 'pyaerocom.io.read_eea_aqerep_v2.ReadEEAAQEREP_V2'> ['EEAAQeRep.v2']
<class 'pyaerocom.io.pyaro.read_pyaro.ReadPyaro'> ['aeronetsdareader', 'aeronetsunreader', 'csv_timeseries']
<class 'pyaerocom.plugins.gaw.reader.ReadGAW'> ['DMS_AMS_CVO']
<class 'pyaerocom.plugins.ghost.reader.ReadGhost'> ['GHOST.EEA.monthly', 'GHOST.EEA.hourly', 'GHOST.EEA.daily', 'GHOST.EBAS.monthly', 'GHOST.EBAS.hourly', 'GHOST.EBAS.daily']
<class 'pyaerocom.plugins.mep.reader.ReadMEP'> ['MEP']
Successfully loaded cache file /home/danielh/MyPyaerocom/_cache/danielh/aeronetsunreader_od550aer.pkl
Successfully imported aeronetsunreader data
<class 'pyaerocom.io.read_aeronet_invv3.ReadAeronetInvV3'> ['AeronetInvV3Lev2.daily', 'AeronetInvV3Lev1.5.daily']
<class 'pyaerocom.io.read_aeronet_invv2.ReadAeronetInvV2'> ['AeronetInvV2Lev2.daily', 'AeronetInvV2Lev1.5.daily']
<class 'pyaerocom.io.read_aeronet_sdav2.ReadAeronetSdaV2'> ['AeronetSDAV2Lev2.daily']
<class 'pyaerocom.io.read_aeronet_sdav3.ReadAeronetSdaV3'> ['AeronetSDAV3Lev1.5.daily', 'AeronetSDAV3Lev2.daily']
<class 'pyaerocom.io.read_aeronet_sunv2.ReadAeronetSunV2'> ['AeronetSunV2Lev2.daily', 'AeronetSunV2Lev2.AP']
<class 'pyaerocom.io.read_aeronet_sunv3.ReadAeronetSunV3'> ['AeronetSunV3Lev1.5.daily', 'AeronetSunV3Lev1.5.AP', 'AeronetSunV3Lev2.daily', 'AeronetSunV3Lev2.AP']
<class 'pyaerocom.io.read_earlinet.ReadEarlinet'> ['EARLINET']
<class 'pyaerocom.io.read_ebas.ReadEbas'> ['EBASMC']
<class 'pyaerocom.io.read_aasetal.ReadAasEtal'> ['GAWTADsubsetAasEtAl']
<class 'pyaerocom.io.read_airnow.ReadAirNow'> ['AirNow']
<class 'pyaerocom.io.read_eea_aqerep.ReadEEAAQEREP'> ['EEAAQeRep.NRT']
<class 'pyaerocom.io.read_eea_aqerep_v2.ReadEEAAQEREP_V2'> ['EEAAQeRep.v2']
<class 'pyaerocom.io.pyaro.read_pyaro.ReadPyaro'> ['aeronetsdareader', 'aeronetsunreader', 'csv_timeseries']
<class 'pyaerocom.plugins.gaw.reader.ReadGAW'> ['DMS_AMS_CVO']
<class 'pyaerocom.plugins.ghost.reader.ReadGhost'> ['GHOST.EEA.monthly', 'GHOST.EEA.hourly', 'GHOST.EEA.daily', 'GHOST.EBAS.monthly', 'GHOST.EBAS.hourly', 'GHOST.EBAS.daily']
<class 'pyaerocom.plugins.mep.reader.ReadMEP'> ['MEP']
<class 'pyaerocom.io.read_aeronet_invv3.ReadAeronetInvV3'> ['AeronetInvV3Lev2.daily', 'AeronetInvV3Lev1.5.daily']
<class 'pyaerocom.io.read_aeronet_invv2.ReadAeronetInvV2'> ['AeronetInvV2Lev2.daily', 'AeronetInvV2Lev1.5.daily']
<class 'pyaerocom.io.read_aeronet_sdav2.ReadAeronetSdaV2'> ['AeronetSDAV2Lev2.daily']
<class 'pyaerocom.io.read_aeronet_sdav3.ReadAeronetSdaV3'> ['AeronetSDAV3Lev1.5.daily', 'AeronetSDAV3Lev2.daily']
<class 'pyaerocom.io.read_aeronet_sunv2.ReadAeronetSunV2'> ['AeronetSunV2Lev2.daily', 'AeronetSunV2Lev2.AP']
<class 'pyaerocom.io.read_aeronet_sunv3.ReadAeronetSunV3'> ['AeronetSunV3Lev1.5.daily', 'AeronetSunV3Lev1.5.AP', 'AeronetSunV3Lev2.daily', 'AeronetSunV3Lev2.AP']
<class 'pyaerocom.io.read_earlinet.ReadEarlinet'> ['EARLINET']
<class 'pyaerocom.io.read_ebas.ReadEbas'> ['EBASMC']
<class 'pyaerocom.io.read_aasetal.ReadAasEtal'> ['GAWTADsubsetAasEtAl']
<class 'pyaerocom.io.read_airnow.ReadAirNow'> ['AirNow']
<class 'pyaerocom.io.read_eea_aqerep.ReadEEAAQEREP'> ['EEAAQeRep.NRT']
<class 'pyaerocom.io.read_eea_aqerep_v2.ReadEEAAQEREP_V2'> ['EEAAQeRep.v2']
<class 'pyaerocom.io.pyaro.read_pyaro.ReadPyaro'> ['aeronetsdareader', 'aeronetsunreader', 'csv_timeseries']
<class 'pyaerocom.plugins.gaw.reader.ReadGAW'> ['DMS_AMS_CVO']
<class 'pyaerocom.plugins.ghost.reader.ReadGhost'> ['GHOST.EEA.monthly', 'GHOST.EEA.hourly', 'GHOST.EEA.daily', 'GHOST.EBAS.monthly', 'GHOST.EBAS.hourly', 'GHOST.EBAS.daily']
<class 'pyaerocom.plugins.mep.reader.ReadMEP'> ['MEP']
Cropping along time axis based on Timestamps
Input filters {'latitude': [-89.0, 89.0], 'longitude': [-178.5, 178.5]} result in unchanged data object
Ignoring station Cuiaba, var od550aer (aeronetsunreader): no data available in specified time interval 2010-01-01T00:00:00.000000 - 2010-12-31T23:59:59.000000
Skipping meta index 0. Reason: DataCoverageError("Could not retrieve any valid data for station Cuiaba and input variables ['od550aer']")
Failed to convert to StationData Error: DataCoverageError("['od550aer'] data could not be retrieved for meta index (or station name) [0]")
Ignoring station GSFC, var od550aer (aeronetsunreader): no data available in specified time interval 2010-01-01T00:00:00.000000 - 2010-12-31T23:59:59.000000
Skipping meta index 3. Reason: DataCoverageError("Could not retrieve any valid data for station GSFC and input variables ['od550aer']")
Failed to convert to StationData Error: DataCoverageError("['od550aer'] data could not be retrieved for meta index (or station name) [3]")
Input time frequency monthly equals current frequency of data. Resampling will be applied anyways which will introduce NaN values at missing time stamps
Input time frequency monthly equals current frequency of data. Resampling will be applied anyways which will introduce NaN values at missing time stamps
Colocation processing status for AEROCOM_MEAN vs. aeronetsunreader
  Model Var   Obs Var   Status
0  od550aer  od550aer  SUCCESS

[8]:

{'od550aer': {'od550aer': pyaerocom.ColocatedData: data: <xarray.DataArray 'od550aer' (data_source: 2, time: 12, station_name: 2)>
  array([[[0.10352023, 0.03902594],
          [0.12133368, 0.06929725],
          [0.05860459, 0.09757444],
          [0.08603477,        nan],
          [0.0838792 ,        nan],
          [       nan,        nan],
          [       nan, 0.11134255],
          [1.04779657, 0.04434151],
          [1.28173338, 0.05913538],
          [0.49343804, 0.04293068],
          [0.19978076, 0.02446057],
          [0.16508896, 0.0554687 ]],

         [[0.07018041, 0.04110068],
          [0.06417298, 0.06631772],
          [0.0651281 , 0.06129938],
          [0.07052724, 0.06702135],
          [0.09388953, 0.06159478],
          [0.09309519, 0.06192226],
          [0.19007444, 0.10699583],
          [0.80961418, 0.08990368],
          [0.78322548, 0.05577568],
          [0.30896598, 0.05242291],
          [0.10184403, 0.02809396],
          [0.08933712, 0.02757543]]])
  Coordinates:
    * data_source   (data_source) <U25 'aeronetsunreader' 'AEROCOM-MEAN-2x3_AP3...
    * time          (time) datetime64[ns] 2010-01-15 2010-02-15 ... 2010-12-15
    * station_name  (station_name) <U13 'Alta_Floresta' 'Tucson'
      latitude      (station_name) float64 -9.871 32.23
      longitude     (station_name) float64 -56.1 -111.0
      altitude      (station_name) float64 277.0 779.0
  Attributes: (12/19)
      data_source:     ['aeronetsunreader', 'AEROCOM-MEAN-2x3_AP3-CTRL']
      var_name:        ['od550aer', 'od550aer']
      var_name_input:  ['od550aer', 'od550aer']
      ts_type:         monthly
      filter_name:     ALL-wMOUNTAINS
      ts_type_src:     ['daily', 'monthly']
      ...              ...
      pyaerocom:       0.14.0
      min_num_obs:     None
      resample_how:    mean
      model_name:      AEROCOM_MEAN
      obs_name:        aeronetsunreader
      vert_code:       None}}

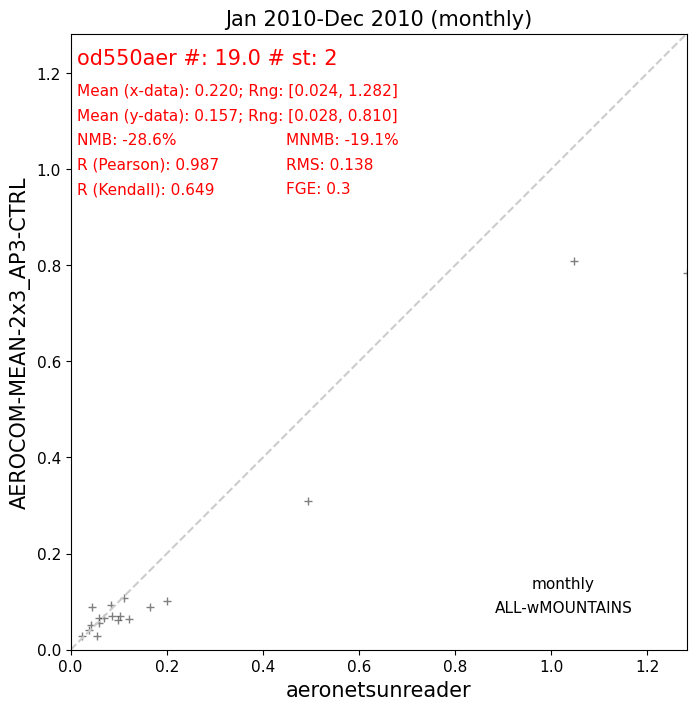

And again we plot the result

[9]:

col.data["od550aer"]["od550aer"].plot_scatter()

[9]:

<Axes: title={'center': 'Jan 2010-Dec 2010 (monthly)'}, xlabel='aeronetsunreader', ylabel='AEROCOM-MEAN-2x3_AP3-CTRL'>
../_images/tutorials_pyaerocom_19_1.png

Pyaro and Aeroval

Aeroval works more or less in the same way as the examples above, the only change is that the config is passed as an argument when defining the observation

[10]:

OBS_GROUNDBASED = {
    ################
    #    Pyaro
    ################
    "Pyaro-m": dict(
        obs_id=config.data_id,
        config=config,
        web_interface_name="Pyaro-d",
        obs_vars=["od550aer"],
        obs_vert_type="Column",
        ts_type="monthly",
    ),
}

Other that that, aeroval works in the same way as before. One thing to notice is that the obs_id must be identical to the data_id!

Configuration Catalogs

Configs can become large and complicated. Thus we don’t want to have to rewrite these config each time. We have introduced a catalog system to save configurations. This is done in using YAML files.

The plan is to have one default catalog that is distributed with pyaerocom, which holds the most used configurations, and the option to have personal catalogs which the user can make themselves.

The default catalog is found in the data folder of pyaerocom

[11]:

PyaroConfig._DEFAULT_CATALOG

[11]:

PosixPath('/home/danielh/Documents/pyaerocom/pyaerocom/pyaerocom/data/pyaro_catalogs/default.yaml')

And looks like this

aeronetsun_test: data_id: aeronetsunreader filename_or_obj_or_url: https://pyaerocom.met.no/pyaro-suppl/testdata/aeronetsun_testdata.csv filters: {} name_map: {} aeronetsun_od550aer: data_id: aeronetsunreader filename_or_obj_or_url: https://pyaerocom.met.no/pyaro-suppl/testdata/aeronetsun_testdata.csv filters: variables: include: - AOD_550nm name_map: AOD_550nm: od550aer

The PyaroConfig class comes with methods to look at the available configs. This method can take the path to a personal catalog. When no path is used, only the default catalog will be used

[12]:

PyaroConfig.list_configs()

[12]:

['aeronetsun_test', 'aeronetsun_od550aer']

From this list we can load a config. As with the list function, you need to add the path to the personal catalog if you want to use it

[13]:

config = PyaroConfig.load("aeronetsun_od550aer")
config

[13]:

PyaroConfig(data_id='aeronetsunreader', filename_or_obj_or_url='https://pyaerocom.met.no/pyaro-suppl/testdata/aeronetsun_testdata.csv', filters={'variables': {'include': ['AOD_550nm']}}, name_map={'AOD_550nm': 'od550aer'})

If you want to save the current config, use can use the save method together with a unique name for the config. This name needs to be unique!

You can add a path to where you want to save the catalog. If no path is given, the current working directory is used

[14]:

config.save("aeronetsun_personal")

[15]:

from pathlib import Path

PyaroConfig.list_configs(Path("./catalog.yaml"))

Updating with private catalog catalog.yaml

[15]:

['aeronetsun_test', 'aeronetsun_od550aer', 'aeronetsun_personal']

[ ]:
